Film Faced Plywood for Concrete Formwork

Durable, Smooth, and Reusable – Engineered for Quality Construction

Key Advantages of HTR Film Faced Plywood

Engineered to deliver strength, smooth finish, and reusability — our film-faced plywood offers a balance of quality and cost efficiency for concrete formwork.

High Strength & Durability

Reinforced core resists bending and cracking during pouring.

Smooth Surface Finish

Phenolic film delivers mirror-like concrete finish and less polishing.

Reusable up to 10 Times

Waterproof film and sealed edges extend service life.

Waterproof Protection

Four-side edge sealing prevents delamination and moisture.

Eco-Friendly Materials

FSC certified sources and an adhesive system confirmed to order.

Cost Efficiency

Lower cost per use compared to steel or aluminum formwork.

Applications of Film Faced Plywood in Construction

Versatile and durable, HTR film-faced plywood delivers smooth, precise results across residential, commercial, and infrastructure projects worldwide.

Residential Buildings

Used for columns, beams and slabs in housing projects — smooth finish and easy handling.

Commercial & Public Projects

Ideal for malls, schools and hospitals requiring consistent surface quality and fast turnaround.

Infrastructure & Bridges

Strong load-bearing formwork for bridge piers and deck sections.

Waterproof Protection

Four-side edge sealing prevents delamination and moisture.
Film faced plywood sheets used for residential building concrete formwork
Heavy‑duty film faced plywood for bridge and infrastructure concrete casting
Film faced plywood boards used in commercial and public building formwork
Workers placing film faced plywood panels for civil and industrial concrete formwork projects

Technical Structure and Specifications

Engineered to perform under tough conditions, each HTR panel is crafted with precise core layers, waterproof sealing and durable surface films to ensure consistent formwork results.

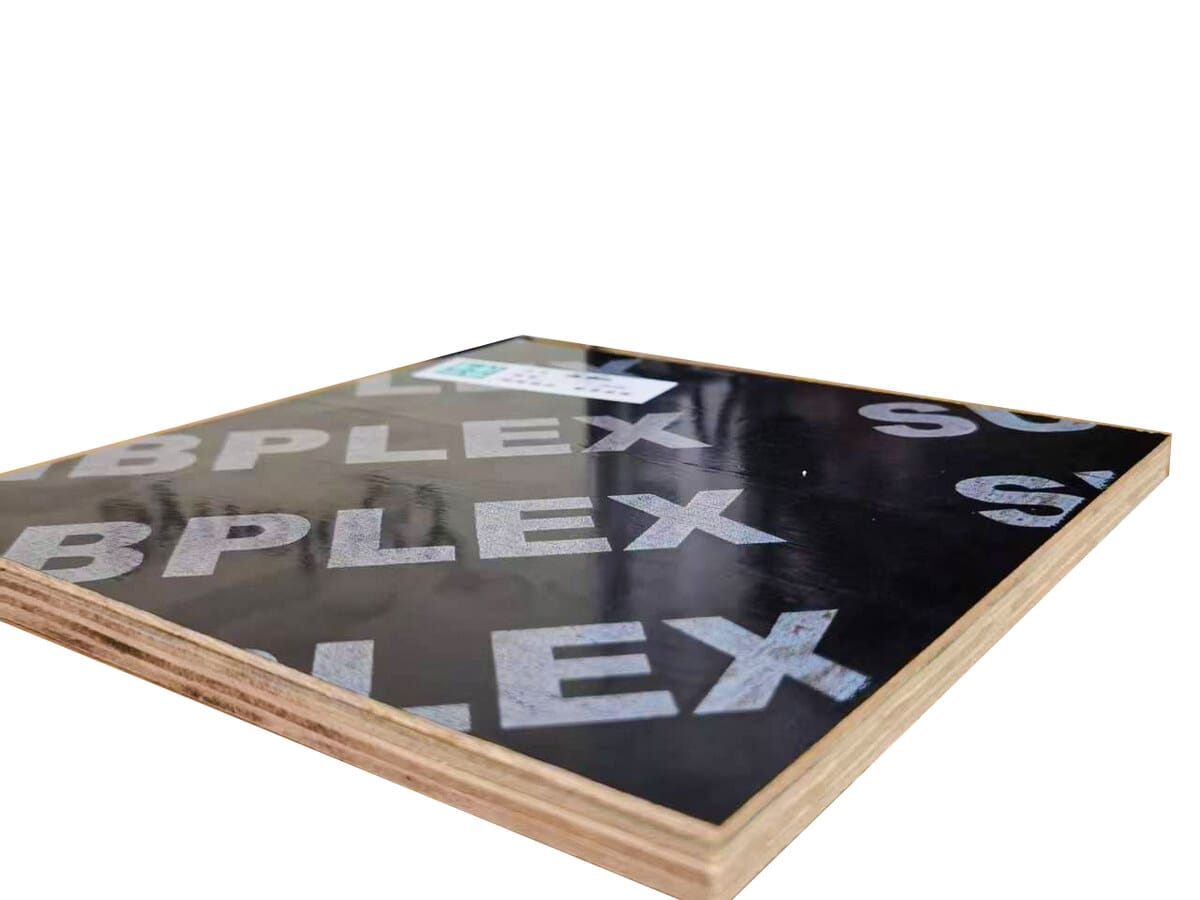

Film-faced plywood structure, side view

Film Faced Plywood Structure

Phenolic film surface on both sides, bonded with WBP glue and hardwood core layers for smooth concrete finish and 8–10 reuse cycles.

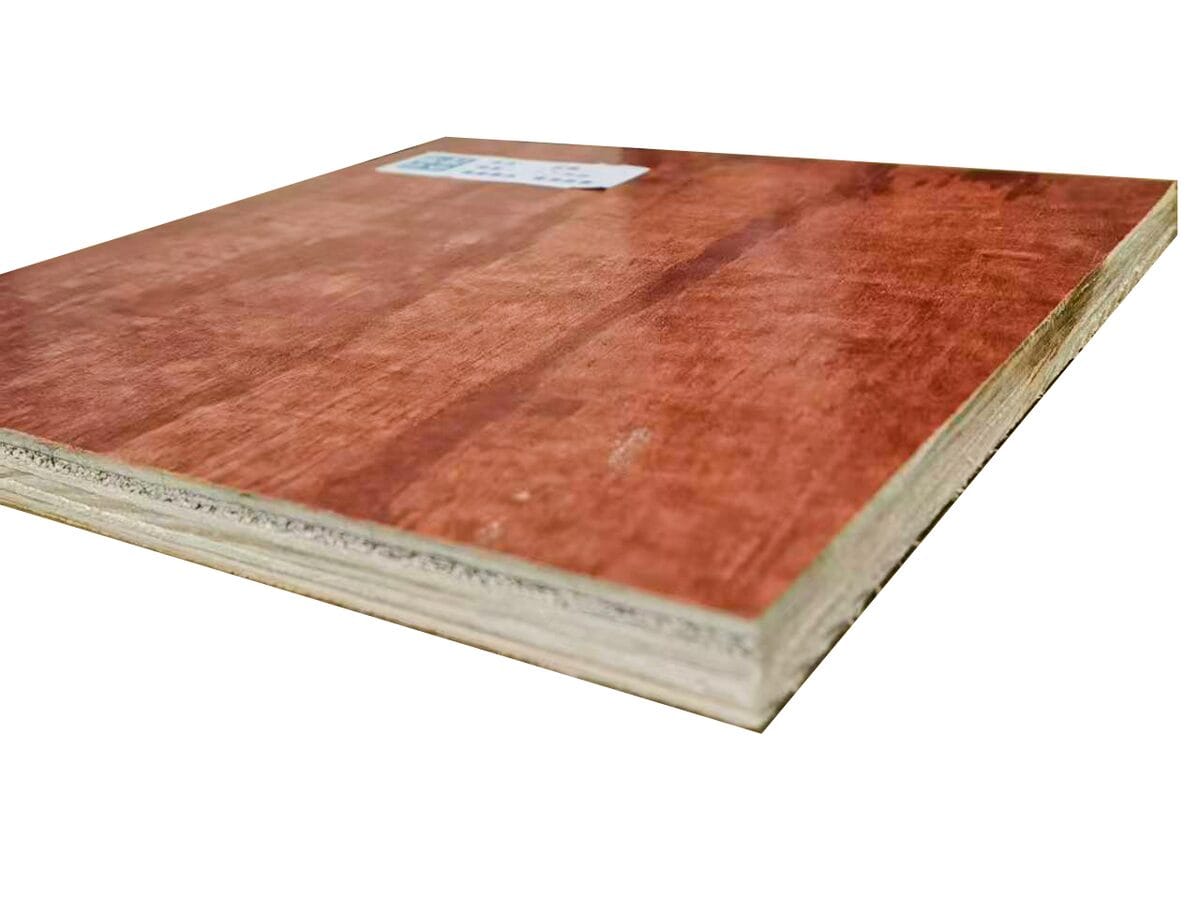

Red board plywood, edge detail (alternate angle)

Red Board Structure

Red film surface with hardwood core bonded by melamine glue and four-time edge sealing for durable reuse and moisture resistance.

All data are typical values from HTR Bamboo factory QC tests.
Parameter Film Faced Plywood Red Board
Standard Size 1220 × 2440 mm 1220 × 2440 mm
Thickness (mm) 12 / 15 / 18 12 / 15 / 18
Core Material Poplar / Eucalyptus Hardwood Core
Glue Type WBP / Phenolic WBP / Melamine
Film Color Black / Brown Red
Reuse Times 8 – 10 times 6 – 8 times
Density (kg/m³) 550 – 680 580 – 700
Moisture Content ≤ 12 % ≤ 12 %
Edge Sealing Waterproof Paint × 4 Coats Waterproof Paint × 4 Coats
  • Waterproof edges (×4)
  • Strong bonding WBP glue
  • Smooth phenolic surface reduces polishing
  • Custom sizes available on request

Quality Control & Global Delivery

Every HTR panel passes strict inspection before shipment — from raw material selection to adhesive bonding and final packaging. Our standardized export packing ensures safe delivery worldwide.

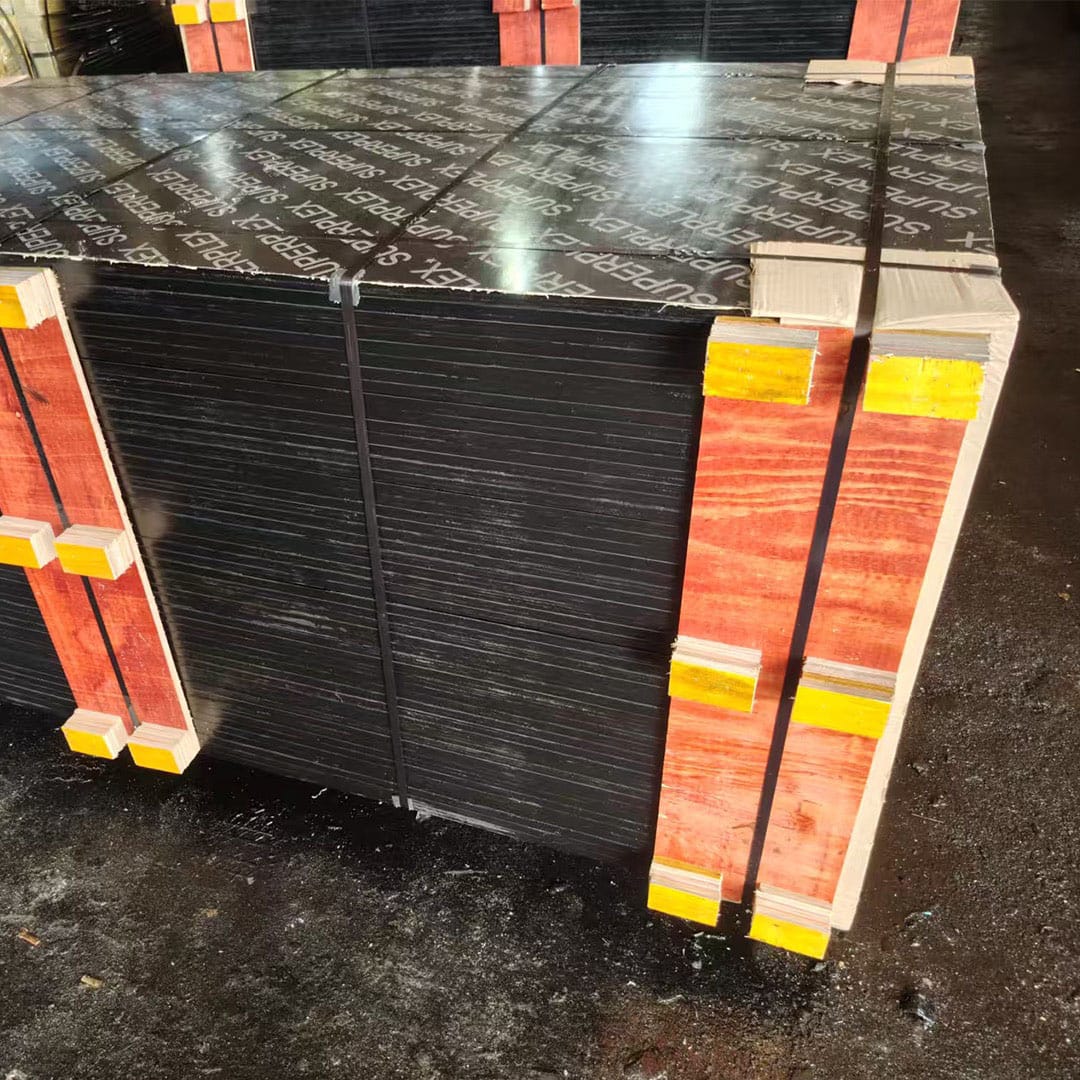

Secure industrial packing of film faced plywood bundles for export

Individual Package

Secure industrial packing of film faced plywood bundles for export

Sample Packaging

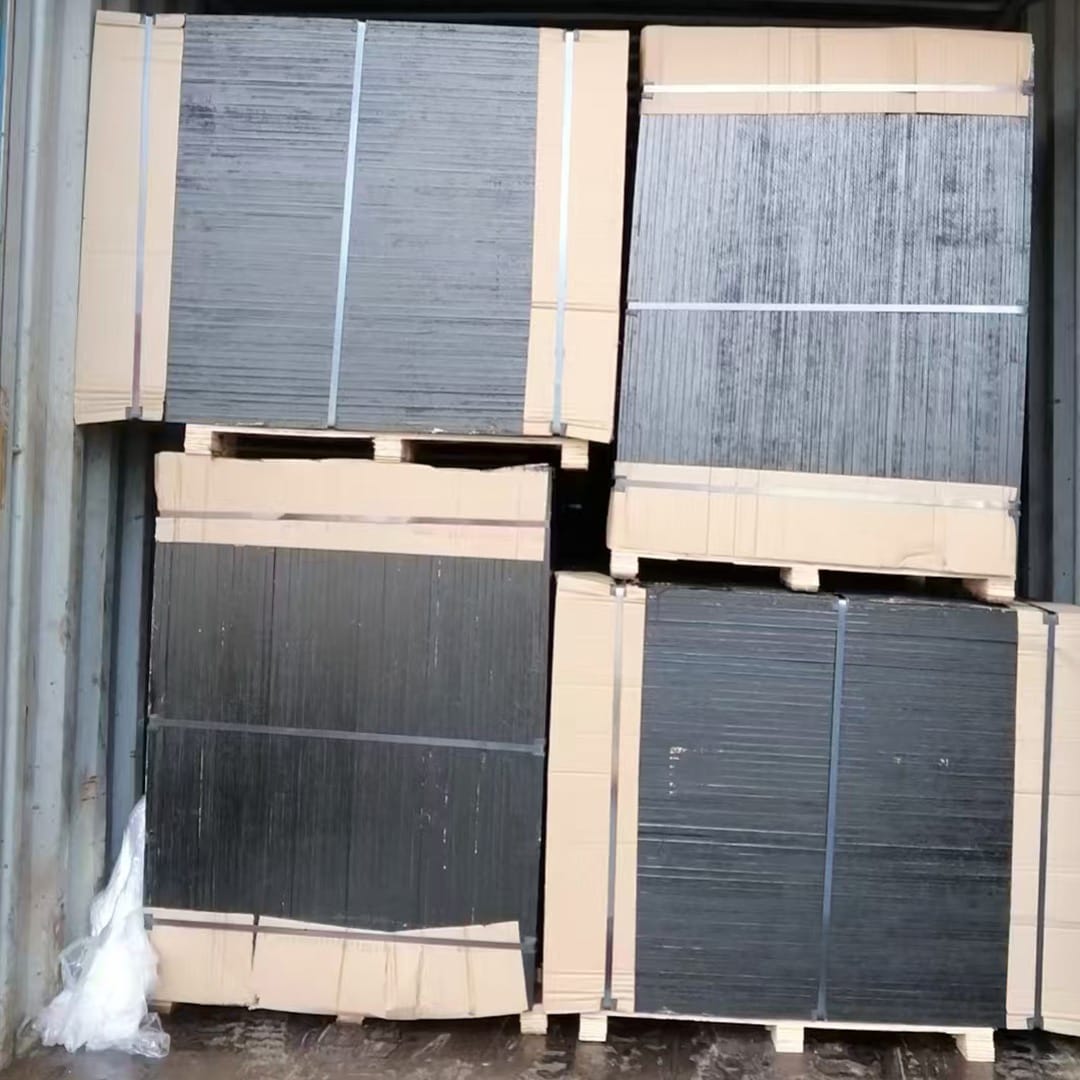

Loading film faced plywood bundles into shipping containers

Loading Container

Incoming Material Inspection

Each batch of core veneer and film is tested for moisture and bonding strength.

Production & Glue Quality Test

Phenolic and melamine glue strength is tested under temperature and pressure simulation.

Final Inspection & Export Packaging

Each panel is checked for flatness, edge seal, and properly wrapped for shipping.

HTR Bamboo products are delivered to over 30 countries across Europe, the Middle East, and Southeast Asia. We support FOB, CIF, and DDP terms for timely and secure shipment.

  • Standard Pallet Packing
  • Moisture-Proof Wrapping
  • Container Loading Supervision

  • Flexible Incoterms (FOB / CIF / DDP)

Blog

Certifications & Compliance

Documentation that lets you import with confidence.

FSC-Certified

Responsibly sourced bamboo, supporting EU Deforestation Regulation (EUDR) due diligence.

Verified Test Configurations

Adhesive systems and applicable test requirements are confirmed by product, application and destination market.

Test Reports & Inspection

Relevant reports can be provided for tested configurations. Third-party inspection is available by arrangement.

Import-Ready Documents

Traceability and due-diligence documentation for smooth EU and Australian clearance.

Frequently Asked Questions

Standard sheets are 1220x2440mm in thicknesses from 9mm to 21mm, with 12mm, 15mm and 18mm the most common for concrete formwork. Custom sizes are available for bulk orders.

Our film faced plywood is rated for up to 10 reuses thanks to the waterproof phenolic film and four-side edge sealing. Actual life depends on handling and pour conditions.

Minimum order is one 20ft container for standard specifications. We can combine sizes and film colours within a container to suit your project.

Yes. We use FSC-certified sources and an adhesive system confirmed to order, with batch test reports and third-party inspection welcome before shipment.

Yes. We offer OEM branding on the film surface and custom packaging for distributors and importers.

Yes. We ship DDP to your port or site with full export documentation. Common destinations include Europe, Australia, the Middle East and Southeast Asia.
